Chapter 1: Introduction
Background and Context
One of the commonly used materials in current multi-story building construction is reinforced concrete, due to its strength, flexibility, and resistance to both compressive and tensile forces, particularly when reinforced with steel. It offers structural ability to stand up to wide spans and load upwards and vertical forces as well as long-term performance to health conditions that differ with time. Beams and slabs are the basic elements of the transfer of loads in such a system. Slabs are used as horizontal plates and carry loads imposed by occupants, finishes, and equipment and direct the loads to mission columns and foundations, which hold the structure together at every point in the grid. Safe and efficient layout of such members is thus architecturally necessary to the stability of the whole building. Meanwhile, concrete mix composition and conformity to applicable design standards, e.g. AS3600 and AS1170, play a key role in assuring strength, durability, serviceability, and safety during the lifespan of the intended use of the structure.
Reinforced concrete and steel structures design requires a clear understanding of material properties, structural loads, and applicable building standards. Students exploring these concepts can benefit from best assignment help to better understand structural engineering principles and their practical application in building design.
Project Overview – Zone Z Allocation
It is the project of a 6-story reinforced concrete building having numerous functions at various levels. Based on the structure, the ground floor is a car parking space; the first, second, and then up to the fourth floor will be offices, and the fifth floor will be services (Rabi et al. 2022). Elements embedded in all levels must suit the purpose in which they are applied where they should be safe and sound as well as efficient.
The report concentrates on one of the 5th-floor Zone Z that has a total of several functional areas, i.e., the Service Room, Corridor, Stairwell, Steam Room, Jacuzzi, and Kids Room. These areas pose special design considerations especially the Jacuzzi which induce huge supplementary water storage pressures which must be factored in the layout of the slab and beam. The consideration of these requirements will ensure that the recognition is compliant with the Australian Standards as well as the practical performance expectations.
Objectives of the Project
The main goal of the project is to show the competence of designing reinforced concrete structural members as outlined by the clauses of AS3600. It is concentrated on Zone Z of the 5th floor, where the analysis and design of a continuous RC beam on Axis 4 and slab panel across gridline 3-5 and A-H are done (Wang et al. 2021). The design process is intended to assure the safety, strength, service and durability of these members in the anticipated loading conditions. Also, the use of principles in the concrete mix design, load estimation, and structural analysis is applicable to the project to reflect practical and code-compliant solutions that can be offered and applied in real life.
Scope of the Design
This project scope focuses on the structural design of two main reinforced concrete components at the 5th floor of a zone (Zone Z) and includes a continuous T-beam on Axis 4 and a two-way slab panel spanning gridlines 3-5 and cells A-H. These members are very important in distributing loads on the areas above to the system that is supporting below. Its design is oriented towards strength and stability, and the AS3600 standards.
The basic features of the columns and footings are not part of the basic scope; however, they could be taken as elective items that are related to contextual knowledge (Gruyter, 2025). Concrete mix design N32 grade prepared by applying the American Volumetric Method is also included in the project to maintain the right compressive strength, serviceability, and durability of the building in its service conditions.
One of the main areas of the scope is load determination. The design takes into account the dead loads; self-weight of slabs, beams, finishes and partitions; live loads; classifying the occupancies of individual rooms, and special loads; the heavy water storage pressures of the Jacuzzi. The scope allows the building to achieve structural safety and serviceability criteria across the lifespan of the building, particularly with regard to handling diverse load effects on the beam and slab.
Design Methodology
The design procedure incorporates material proportioning, structural assumptions, load estimating and step-by-step structural analysis to ensure secure and resilient reinforced concrete components. It is initiated by that of N32 grade concrete mix design on the basis of the American Volumetric Method certain to maintain the demands of strength, durability, etc (Ellobody, 2023). Workability, strength, and serviceability are balanced by combining parameters that include water cement ratio (0.41), maximum aggregate size (25 mm sub-angular crushed stone), required slump (75 mm) and air content (non-air-entrained).
As per AS3600, structural assumptions are made such as the span-to-depth ratios to limit deflection, exposure category A1 (indoor environment), and the concrete cover size of 20 mm made to cover the reinforcement. These assumptions will guarantee sustainability and sustainability in performance in Zone Z.
Estimation of loads is based on AS1170, including dead loads due to self-weight and finishes, live loads due to occupancy types (corridor, service room, kids room, steam room) and special loads (Jacuzzi water pressure) (Pan & Zhang, 2023). Load combinations are identified to strength and serviceability limit states.
The continuous T-beam and two-way slab panel are analysed structurally by computing shear forces, some bending moments, and some deflections. AS3600 streamlined design process is used to dimension reinforcement, to check serviceability and prepare reinforcement detailing so that the completed design contains no code, and is usable in the field.
Significance of the Study
The study is therefore part of closing the gap between academic theory and practical hardships imposed by structural design on a consultancy basis. It targets peculiar problems of the 5th Zone Z, i.e. the hydrostatic load of the water in the Jacuzzi and higher live loading in corridors by taking into account the aspects of the strength and serviceability. The project raises the technical capability of implementing AS1170 and AS3600, which are industry-concerned standards (Kovalov et al. 2022). Besides, it offers an additional boost to the concrete mix design, structural analysis, and reinforcement detailing interaction, which will qualify the student to work professionally in the engineering area where safety, efficiency, and reliability are an indispensable environment.
The project also highlights the connection between structural safety, material selection, and the functional requirements of building design. Students studying building layouts, spatial planning, and structural coordination can explore support for an architecture assignment to develop a better understanding of how architectural requirements relate to structural engineering decisions.
Chapter 2: Concrete Mix Design
Introduction
Design Concrete mix design is important in the safety, durability and service life of reinforced concrete structures. Through proper resource allocation, engineers can balance out the materials they require to provide the needed strength and still have some workability and resistance to environmental factors. In this project, the mixture is customised to the requirements of the location of Zone Z on the 5th floor, where slabs and beams are exposed to diverse loads, and among them, a special water storage pressure. The design is related to compliance with AS3600 durability provisions. To define the mix proportions, the American Volumetric Method is followed to provide a systematic way of attaining dependable performance.
Strength Requirements
In this project, the concrete grade will be that of N32, which is equivalent to a compressive strength (f’c), of 32 MPa at 28 days. This grade is typical in the structural activity where beams and slab need to perform considerable imposed loads supported as well as being able to be serviced (Fan et al. 2021). Given the salient structural members in the Zone Z of the 5th floor are a continuous T-beam and a two-way slab each of which experienced variable live loads and special water loads caused by the Jacuzzi, a dependable strength margin is a prerequisite.

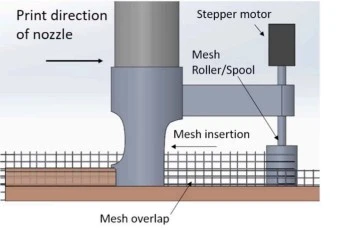

(Source: Baduge et al. 2021)
There is a basis of varying materials and workmanship to consider and provide the target mean strength at 40.5 MPa; it is a safety margin. This margin overcomes the few test samples which are usually available at the time construction is in progress, and this is standard practice to minimise the risk of underperformance. N32 had been chosen to favour both economical choice and at the same time, high-grade materials like N40 can boost material costs, not required, thus low grades accentuate structural safety (Zhang et al. 2022).
In general, the selected strength class allows keeping the beam and slab in Zone Z within the limit state requirements of ultimate and serviceability limits, which gives an assurance of the performance and durability in the long term of the structure.
Water–Cement Ratio
Another most important parameter concerning concrete mix design is the water-cement ratio (w /c ratio) as it directly determines strength, durability, and workability. In this project, one has considered a value of 0.41, which is appropriate to non-air-entrained concrete subjected to a mild interior environment. This choice follows the durability demands in AS3600 as well, as with the exposure category of A1 that comprises interior concrete that is completely shielded against external forces of the weather or destructive elements.
(Source: Water Cement Ratio Formula: 2016)
An effective ratio of w/c is 0.41, which offers a good compromise point between strength and workability (Beckmann et al. 2021). At this ratio, it is anticipated that the mean strength of the concrete will meet the target point of 40.5MPa, whereby the designed members are capable of bearing both dead and live load whilst remaining serviceable through analysing the design life of the building. A lesser ratio would enhance strength but may decrease the workability; also, placement and compaction may be a challenge in slab/ beam areas. On the other hand, an increased ratio would enhance workability but at a greater cost of strength and permeability, preventing durability at long-term orientation.
In this way, the chosen w/c ratio displays sufficient strength, workability, and durability against deterioration of the concrete mix that would be used in Zone Z beams and slabs.
Selection of Materials
The definitiveness of the concrete productions depends on the materials used in order to realise the desired performance. In this project, the chosen material of coarse aggregate is a 25 mm sub-angular crushed stone, which can be favoured by being highly strong and able to lock with each other and relatively less in water demand than rounded aggregates (Raphael et al. 2023). It enhances bonding with cement paste because of its angularity, wherein the cement mix gives the required compressive strength.
These include a 2.60 fine aggregate modulus of fineness, which implies a medium level of grading to workability and long-life. Bulk density was used to ensure that there is an appropriate proportioning between sand and coarse aggregate. The sand adds enough sand to allow the concrete to be kept workable and at the same time, not excessively shrink.
Cement is predetermined fixed at 441kg/m3, well in excess of the 310kg/m3 minimum limit of structural concrete laid out in AS3600. This increased cement-based material helps to sustain the intended performance in terms of mean strength, as well as enhance durability (Alabbasi et al. 2023). The proportion of water is fixed at 181 kg/m3 to represent the sub-angular form of the aggregates, conforming to providing sufficient workability.
It has an assumed air content of 1.5-2% of air, which is common in the mild conditions in non-air-entrained concrete. A defined slump of 75 mm is taken, a figure chosen to ensure that it is easy to incorporate into slabs and beams and at the same time to maintain sufficient cohesion to avoid excessive segregation during manipulation.
Mix Proportioning Process
The mix of the concrete was prepared in compliance with the American Volumetric Method, i.e. all the components are measured in terms of volume and transformed into weight to be batched conveniently (Song et al. 2024). The calculation of the required water level of 181 kg/m3 based on a 25 mm aggregate dimension and even a slump grade of 75mm initiates this spacious method.
Based on the desired means of 0.41, the chosen water-cement ratio, 441 kg/m3 of cement can be obtained, which also meets the minimum of AS3600.
The second step is to ascertain the amount of coarse aggregate. In the case of 25 mm sub-angular crushed stone, the bulk density assumed is 1600 kg/m3, and the volumetric proportions give the mixed aggregate of about 1202 kg/m3. The remaining part of the volume is occupied by the aggregate fine, which will be computed, 643 kg/m3 based on a 2.60 fineness modulus. These proportions are physically sufficient to maintain good workability and good strength at the same time, keeping the segregation and bleeding at a minimum.
This results in the final mix composition of each cubic metre is: Water = 181 kg, Cement = 441 kg, Fine Aggregate = 643 kg and Coarse Aggregate = 1,202 kg with the air content of 1.5- 2% (Olsson et al. 2023).
Final Mix Design and Verification
The result of the final mix design, which was formulated by using the American Volumetric Method, is the following mix: 181 kg of water, 441 kg of cement, 643 kg of fine aggregate, 1,202 kg of coarse aggregate, and 1.5-2.0% of air that defines the mix. The resulting proportions yield cement content significantly greater than the necessary minimum 310 kg/m 3, and a water-cement ratio of 0.41, since the ratio provides durability properties that align with UnderAS3600 area Exposure, Class A1 moisture and independent of temperature ( interior, mild environment) durability properties.
Checking of the mix shows that it achieved the two premises of the project of strength and serviceability. The average strength at 40.5 Mpa is higher than that of the provided 32 MPa grade, and it provides a suitable tolerance on variation of materials (Friese et al. 2022). The slump of 75 mm was full in order to have a working mix to allow the beam and slab to be homogeneous and at the same time imparts cohesiveness to the mix to ensure that the mix does not separate.
The combination of materials and cement content incorporated can be readily mixed, compacted and finished without excessive Shrinkage or chances of crack propagation. It is noteworthy that the mix may also be used in the Zone Z, where the slabs and beams are required to hold standard occupancy loads and other hydrostatic pressure imposed by a Jacuzzi (Kazemi et al. 2023). Design Final, thus, validates successful functions as far as strength, durability and serviceability use is concerned.
| Material | Quantity (kg/m³) | Notes |
|---|---|---|
| Water | 181 | Ensures workability (Slump: 75 mm) |
| Cement | 441 | > AS3600 minimum of 310 kg/m³ |
| Fine Aggregate | 643 | Based on 2.60 fineness modulus |
| Coarse Aggregate | 1,202 | 25 mm sub-angular crushed stone |
| Air Content | 1.5 – 2.0 % | Non-air-entrained; for mild exposure |
| Water-Cement Ratio | 0.41 | Meets strength and durability balance |
| Target Mean Strength | 40.5 MPa | Exceeds characteristic f’c = 32 MPa |
Table 1: Final Concrete Mix Proportions
Summary
The study established a concrete mix design of structural elements in Area Z in the 5th floor in Zone Z, which was developed through the application of the American Volumetric Method. The ultimate ratio of mixes is 181kg of water, 441kg cement, 643kg fine and 1202kg gross per cubic metre, resulting in a water/cement ratio of 0.41. The mix fulfils all the AS3600 requirements of longevity during the Exposure Class A1 and has sufficient workability and strength. The design has a target mean strength of 40.5 MPa and is hence in compliance with the structural requirement and serviceability requirements.
